Block and Liner Pool Kits



The Poolstore UK range of DIY block and liner pool kits are made up made of quality Certikin products which are proven for their quality, performance and longevity.



All you need to do is choose the size pool you are going to build from our options below and then call our sales team on 0800 690 6288 to purchase your desired pool kit.  You or your builder will then dig the hole, supply the blocks and mortar, build the pool walls and floor, then install your pool equipment to finsh off your completed dream swimming pool.



All our block and liner swimming pool kits come complete with a DVD with an installation guide, a guide to liner pool construction and a guide to pool maintenance.



If you aren't building the pool structure yourself and you require some assistance in finding a competent pool engineer to assist you then please call our sales team now on 0800 690 6288 as we will be able to recommend some pool builders who will be able build your pool and install your pool equipment.

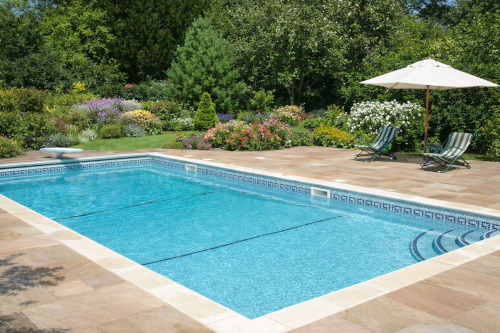

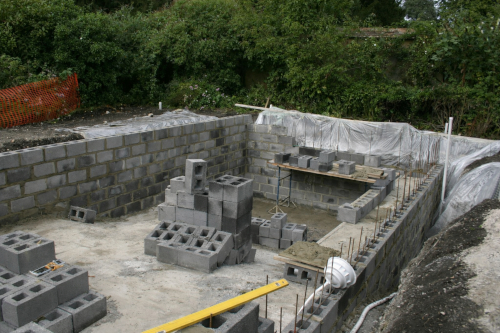

From This	To This





Poolsize Depth	20' x 10'  3'4"	24' x 12' 3'4" - 5'3"	28' x 14' 3'4" - 6'	30' x 15' 3'4" - 6'	32' x 16' 3'4" - 6'9"	38' x 16' 3'4" - 7'6"	40' x 20' 3'4" - 7'6"
Guides
Guide to liner pool construction	1	1	1	1	1	1	1
Plumbing Kit
3m length of top mount liner lock	9	9	9	9	13	13	13
Liner lock radius corners	4	4	4	4	4	4	4
Box of masonry nails	1	1	1	1	1	1	1
Collar skimmer + liner wide mouth throat	1	1	1	1	2	2	2
6" liner main drain	2	2	2	2	2	2	2
Plumber liner eyeball inlet	2	2	2	2	2	2	2
1.5" Class C pipe - per metre	45	45	45	45	30	30	30
2" Class C pipe - per metre					45	45	45
250ml Abs glue - c/w brush	2	2	2	2	3	3	3
1.5" double union ball valve	2	2	2	2
2" double union ball valve					2	2	2
1.5" 45 degree elbows	10	10	10	10
1.5" 90 degree elbows	20	20	20	20	10	10	10
1.5" equal Tee piece	5	5	5	5
1.5" Hex nipples	10	10	10	10
1.5" plain sockets	20	20	20	20	10	10	10
1.5" socket unions	5	5	5	5
1.5" M/T socket unions	5	5	5	5	5	5	5
2" - 1.5" plain reducers					10	10	10
2" 45 degree elbows					10	10	10
2" 90 degree elbow					20	20	20
2" equal Tee piece					10	10	10
2" Hex nipples					10	10	10
2" plain sockets					20	20	20
2" socket unions					5	5	5
Clear Dow corning sealant 78g	1	1	1	1	1	1	1
Pipe cleaner 500ml	1	1	1	1	1	1	1
Roll of PTFE tape	2	2	2	2	2	2	2
Pool pipe label	1	1	1	1	1	1	1
Liner
30 thou Certikin Patterned liner	1	1	1	1	1	1	1
Filtration kit
20" Vision top mount filter c/w sand + valve	1	1	1	1
Aquaspeed 0.75hp, 1ph pump	1	1	1	1
24" Vision top mount filter c/w sand + valve					1	1	1
Aquaspeed 1.0hp, 1ph pump					1	1	1
Maintenance kit
8'-16' Telescopic pole	1	1	1	1	1	1	1
10" scoop thermometer	1	1	1	1	1	1	1
9 metre vacuum hose	1	1	1	1
12 metre vacuum hose					1	1	1
Kornea vacuum plate	1	1	1	1	1	1	1
18" standard pool brush	1	1	1	1	1	1	1
Deep leaf net	1	1	1	1	1	1	1
Liner vacuum head	1	1	1	1	1	1	1
1.5"  3 plastic tread Ladder	1	1	1	1	1	1	1
Poolstore UK discounted price inc. VAT	£4,870.00	£5,440.00	£6,211.00	£6,510.00	£8,156.00	£8,770.00	£9,990.00
Optional Extras
Nirvana Air Source Heat pump	FC70	FC70	FC70	FC85	FC110	FC110	FC110
	£3,395.00	£3,395.00	£3,395.00	£3,695.00	£4,195.00	£4,195.00	£4,195.00
Geobubble 600 micron summer cover with fitted leading edge kit	£328.00	£419.00	£528.00	£588.00	£653.00	£753.00	£953.00
Monte Carlo Reel system	£685.00	£685.00	£685.00	£745.00	£745.00	£745.00	£745.00
Classic Winter Debris Cover	£408.00	£557.00	£729.00	£824.00	£926.00	£1,086.00	£1,390.00
9" Danebury Natural stone Coping Set	£1,915.00	£2,158.00	£2,400.00	£2,522.00	£2,643.00	£2,989.00	£3,129.00



Delivery Lead time on these kits is around 4-5 working days from order.



Please note that the pool liner will be made to order once you have completed our liner order form as the liners are always bespoke made to the fit the pool. The delivery lead time on the liner will be around 12-15 working days from order.



If we do not show the size pool that you intend to build or the additional equipment you require then please email us with your details to sales@poolstore.co.uk for a bespoke quotation.
